Making a Mini Firebird

Inspired by a guitar forum challenge to modify a guitar I decided to make my Granddaughter a Firebird based around a Harley Benton mini strat from which I’d use just the neck. I chose a left-handed guitar as the donor so that my guitar would have a reverse headstock. I carved the headstock to have a Firebird style rebate and refretted in Jescar Evo gold fretwire.

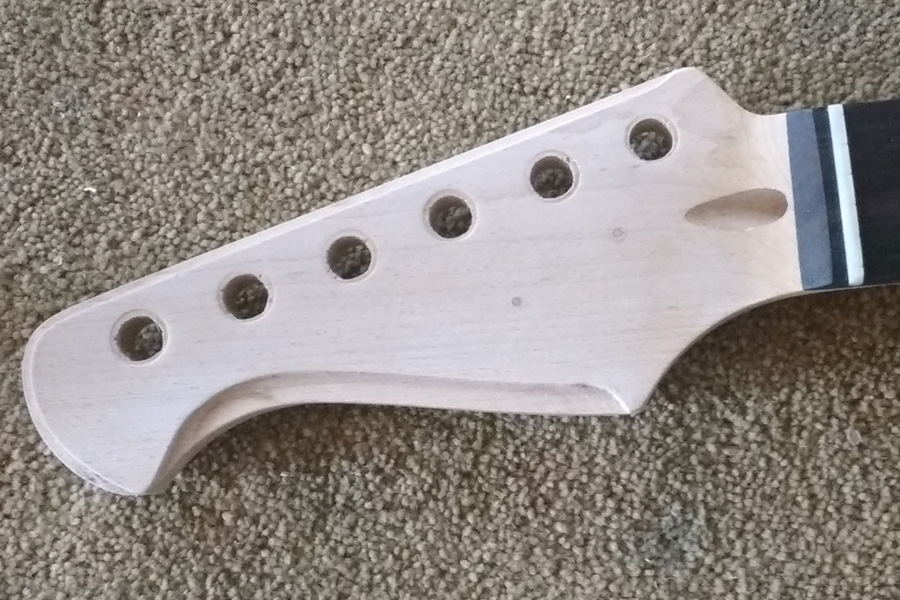

Carved headstock

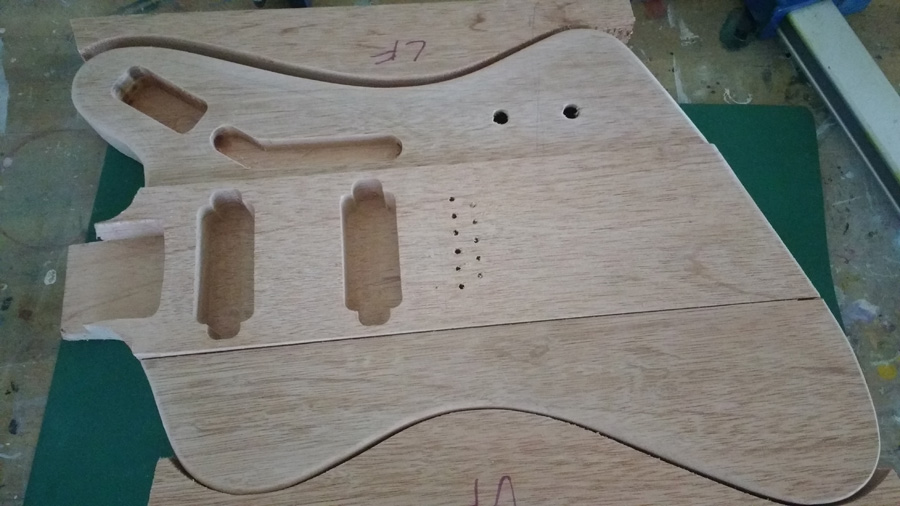

I made the body from meranti which is a very light wood with properties similar to mahogany and used a CNC Shopbot to make the body which comprised three parts butt jointed and glued.

Using the offcuts as cauls to clamp

I glued the neck in.

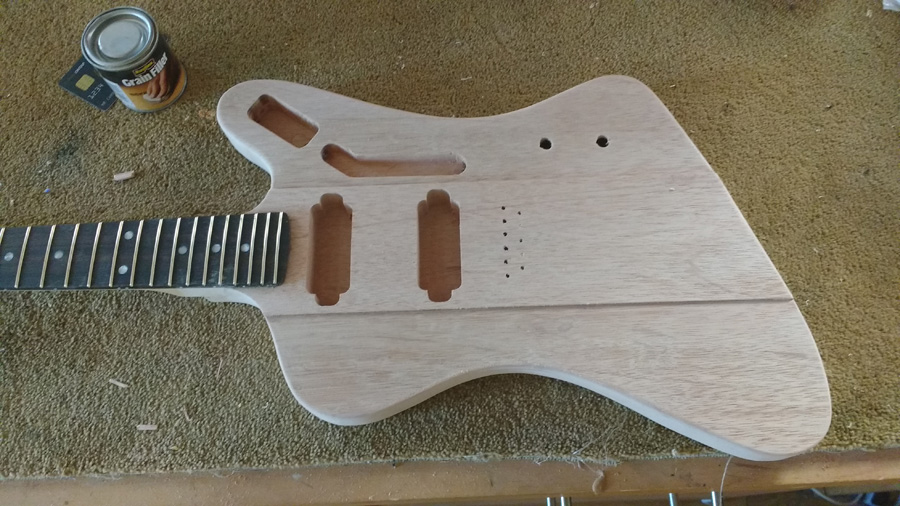

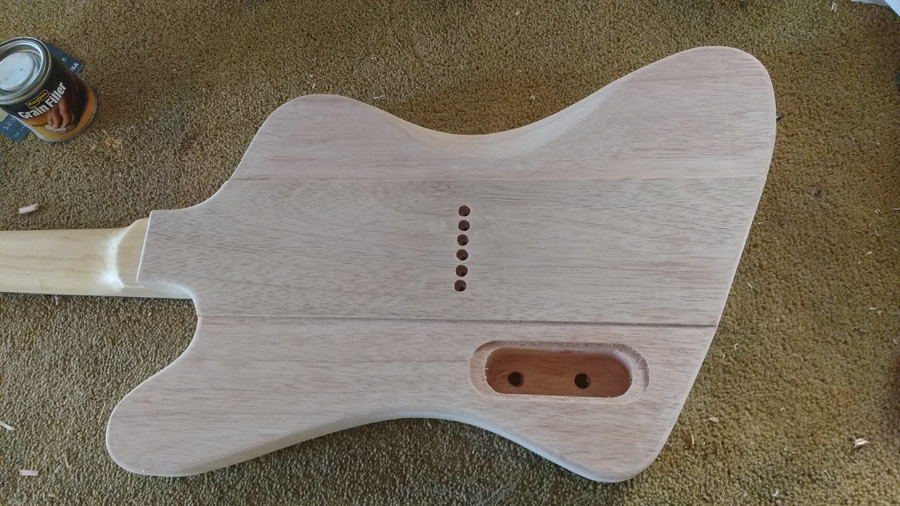

Once the meranti was grain filled, I primed and sprayed using a specially mixed colour close to Gibson’s Heather Mist Poly.

The pickguard was made on a laser-cutter which etched the Firebird logo and I assembled using gold plated hardware. I even strung it using Optima 24ct gold plated strings for extra bling.

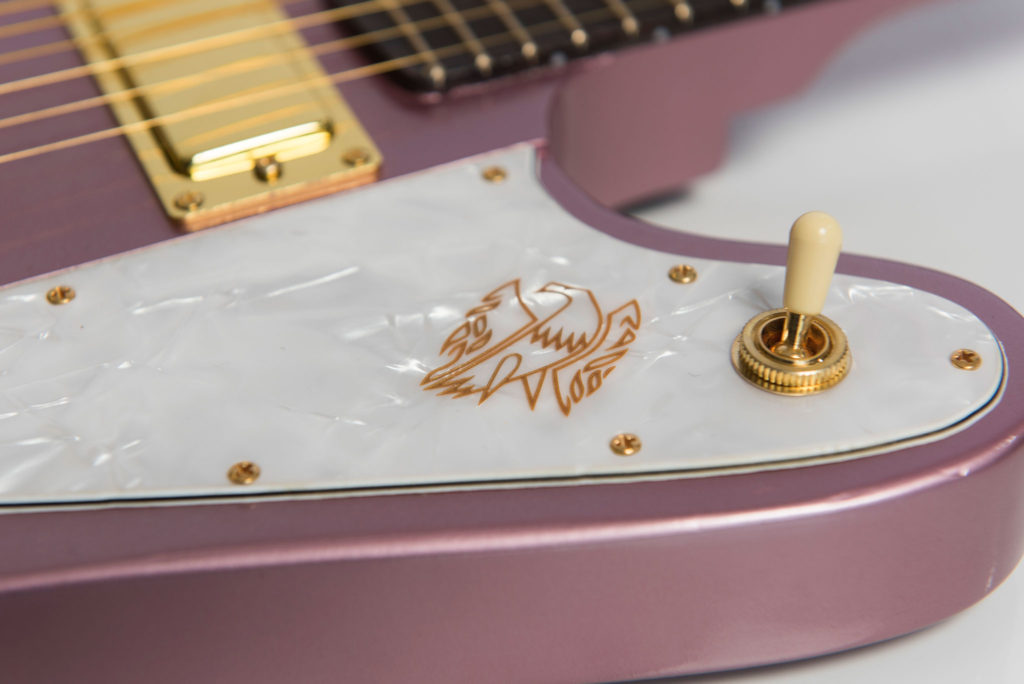

Laser etched pickguard

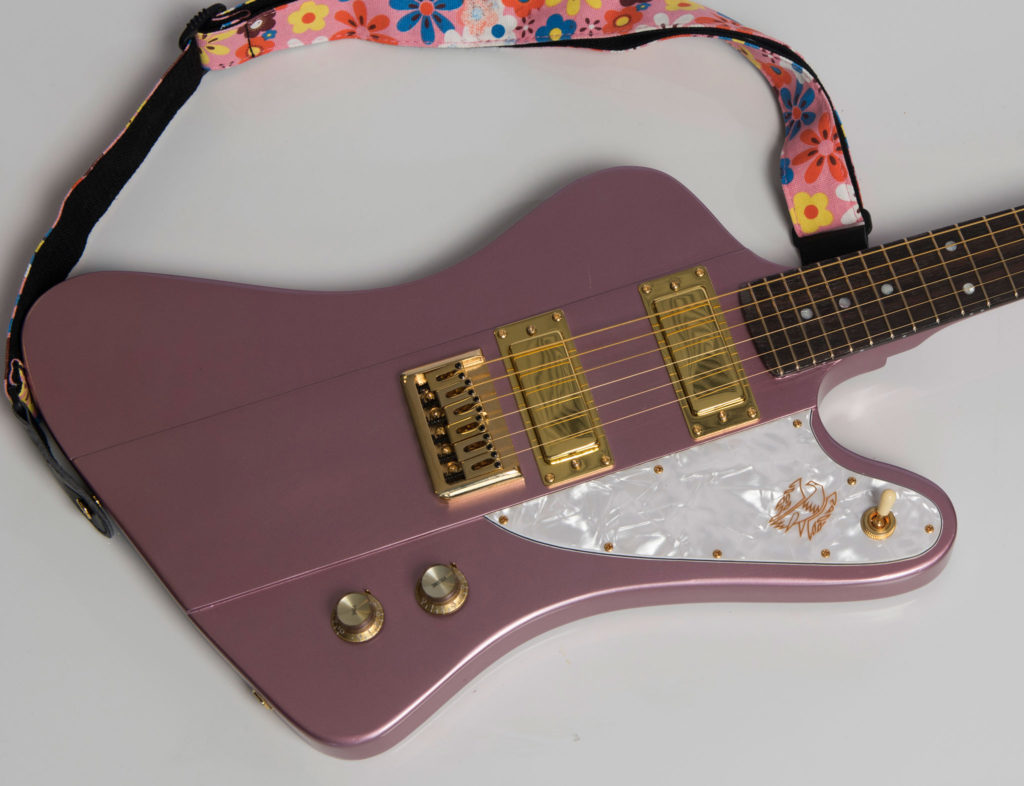

The completed Firebird
